Book Free ConsultationA TV unit in an Indian home does more than hold a screen. It stores set-top boxes and displays family photographs. For bedrooms, home offices, and modern kitchens, the right TV unit design brings smart storage and visual appeal.
Select the Layout As per Your Room
In Indian homes, the same flat may need a floating TV unit in the master bedroom, a full-wall unit in the living room, and a compact unit in the guest room.
Swipe to see more columns
| Layout / Type | Description | Best Used In |
|---|---|---|

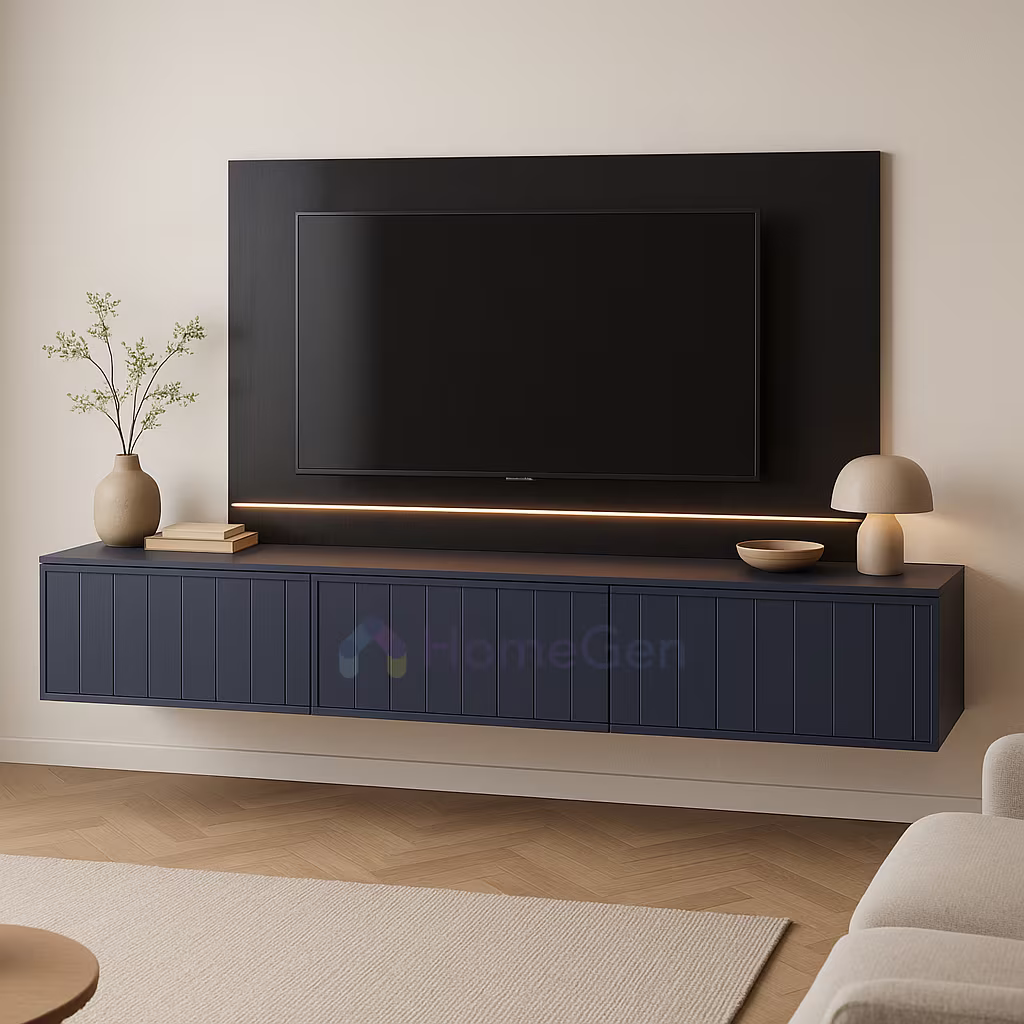

| Floating Wall-Mount | Unit fixed to wall, no floor contact | Master bedrooms, small living rooms |

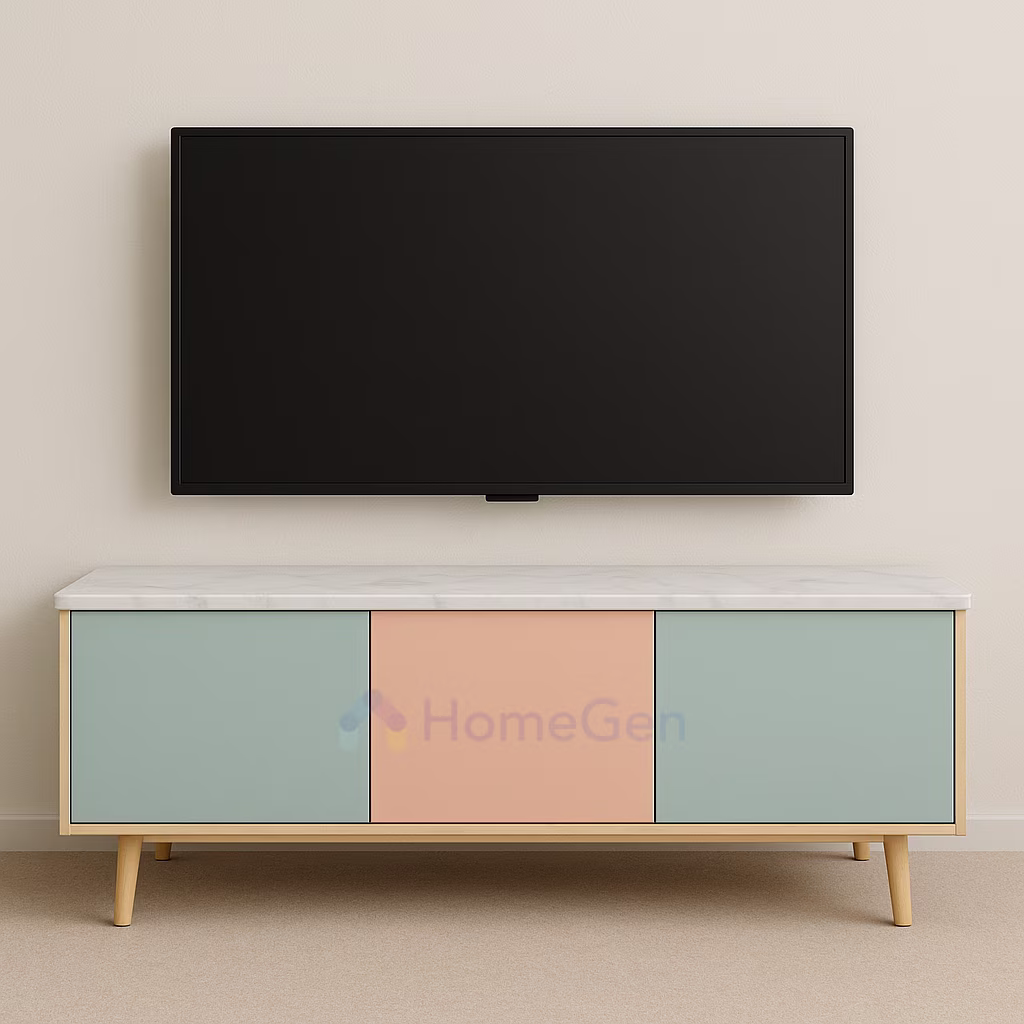

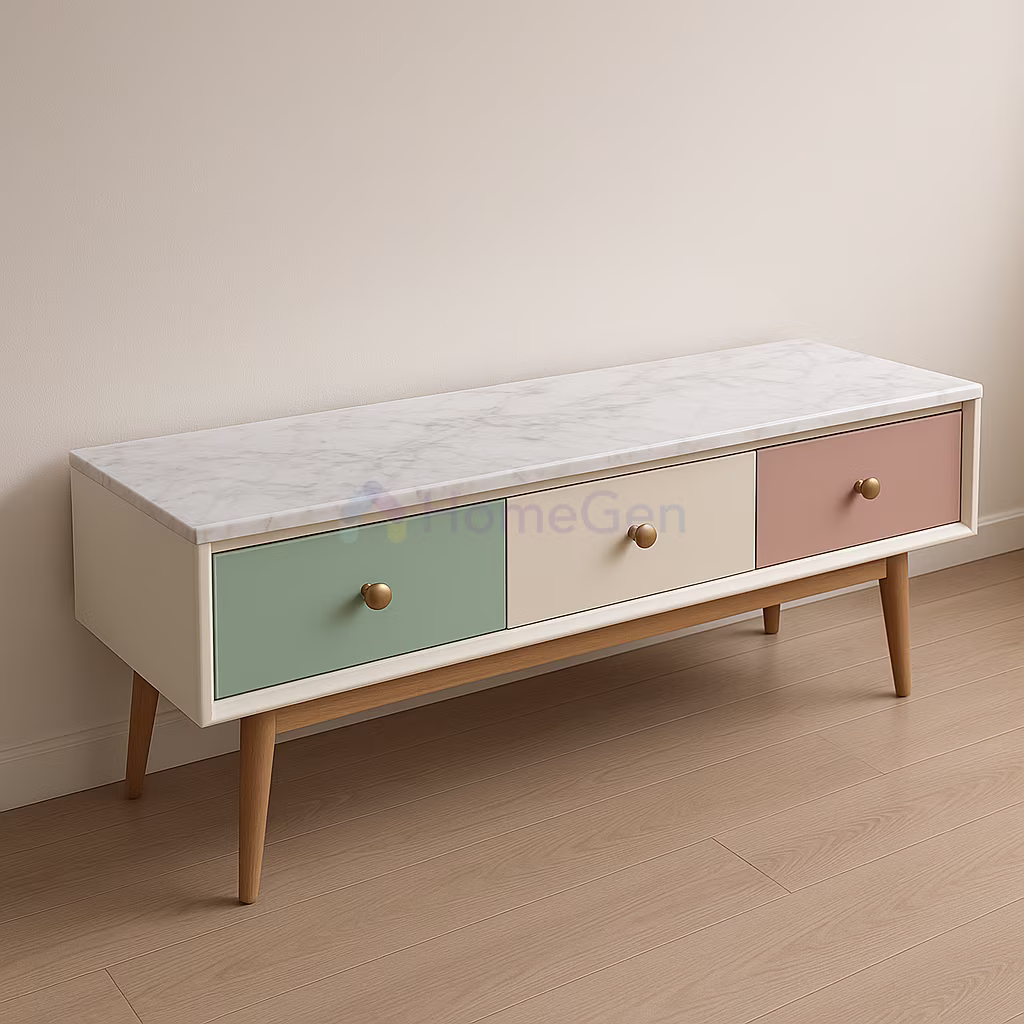

| Floor Mounted | Rests directly on the floor, providing maximum stability and often offering greater storage capacity. | Larger living rooms or hall, family rooms, bedrooms |
Material & Finish Selection for Indian Conditions
Humidity, dust, and termites are real concerns.
Swipe to see more columns
| Material | Best Finish Options | Moisture Resistance | Termite Resistance |
|---|---|---|---|
| BWP Plywood | Laminate (Merino, Greenlam), Veneer, PU paint | Excellent | High |
| MR Plywood | Laminate | Moderate (for dry zones) | Medium |
| MDF | PU gloss, Acrylic, Duco paint, Veneer | Low (swells if wet) | Low |
| Particle Board | Laminate, painted | Very Low | Very Low |
| Solid Wood | Lacquer, Oil, Wax, Matte Polish | Medium (teak best) | High (teak), Medium (mango) |

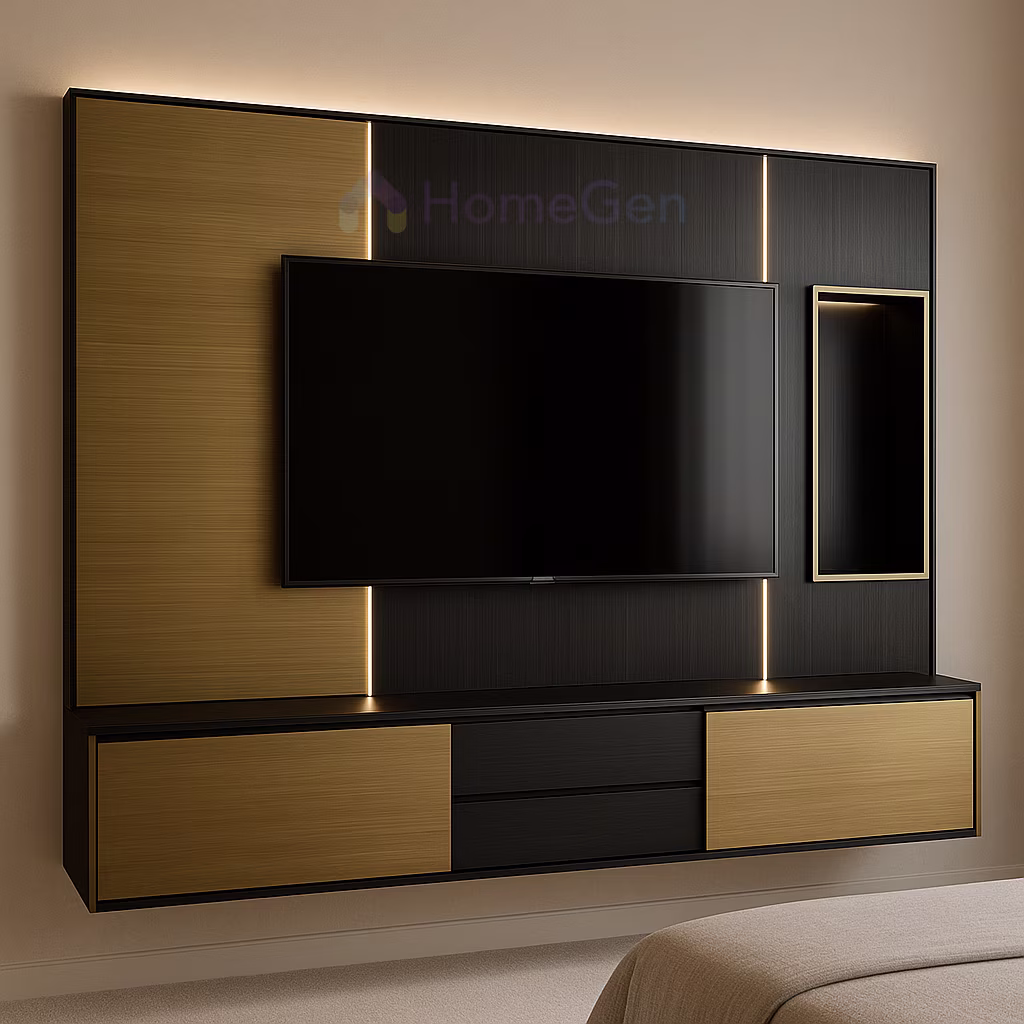

| WPC / PVC Boards | Pre-laminated matte/gloss | 100% waterproof | 100% termite-proof |
| Metal (MS/Aluminium) | Powder coating | High (if coated) | High |
| Tile / Granite Top | Polished / matte | Excellent | Excellent |
Size & Proportion for Indian TV Viewing Habits
TV height and unit size change dramatically between the living room sofa and the bedroom charpoy or bed.
Swipe to see more columns
| TV Size (Diagonal) | TV Width (approx) | Ideal Distance | Living Room TV Centre Height | Bedroom TV Centre Height |
|---|---|---|---|---|
| 32″ | 28″ (71 cm) | 4–5 ft | 38–40″ from floor | 48–52″ from floor (watch from bed) |
| 43″ | 38″ (97 cm) | 5–7 ft | 40–42″ | 50–55″ |
| 55″ | 48″ (122 cm) | 7–8 ft | 42–44″ | 52–56″ |
| 65″ | 57″ (145 cm) | 8–10 ft | 44–46″ | 54–58″ (if very high, use tilting wall mount) |
| 75″+ | 66″+ (168 cm+) | 10 ft+ | Centre as per eye level | Use a dedicated viewing chair |
Storage Needs for Indian Households
Indian living rooms store everything — from dandiya sticks to spare sheets and multiple remotes. Plan storage accordingly.
Swipe to see more columns
| Storage Element | Use | Recommendation |
|---|---|---|
| Closed Cabinets (Laminate Shutters) | Set-top boxes, spike guards, spare bedding, board games | 70–80% of unit should be closed |
| Open Shelves | Pooja items, books, travel souvenirs, family photos | Use fewer — dust in Indian cities is relentless |
| Drawers (Soft-Close) | Remote controls, cables, spectacles, chargers | One shallow top drawer is a game-changer |

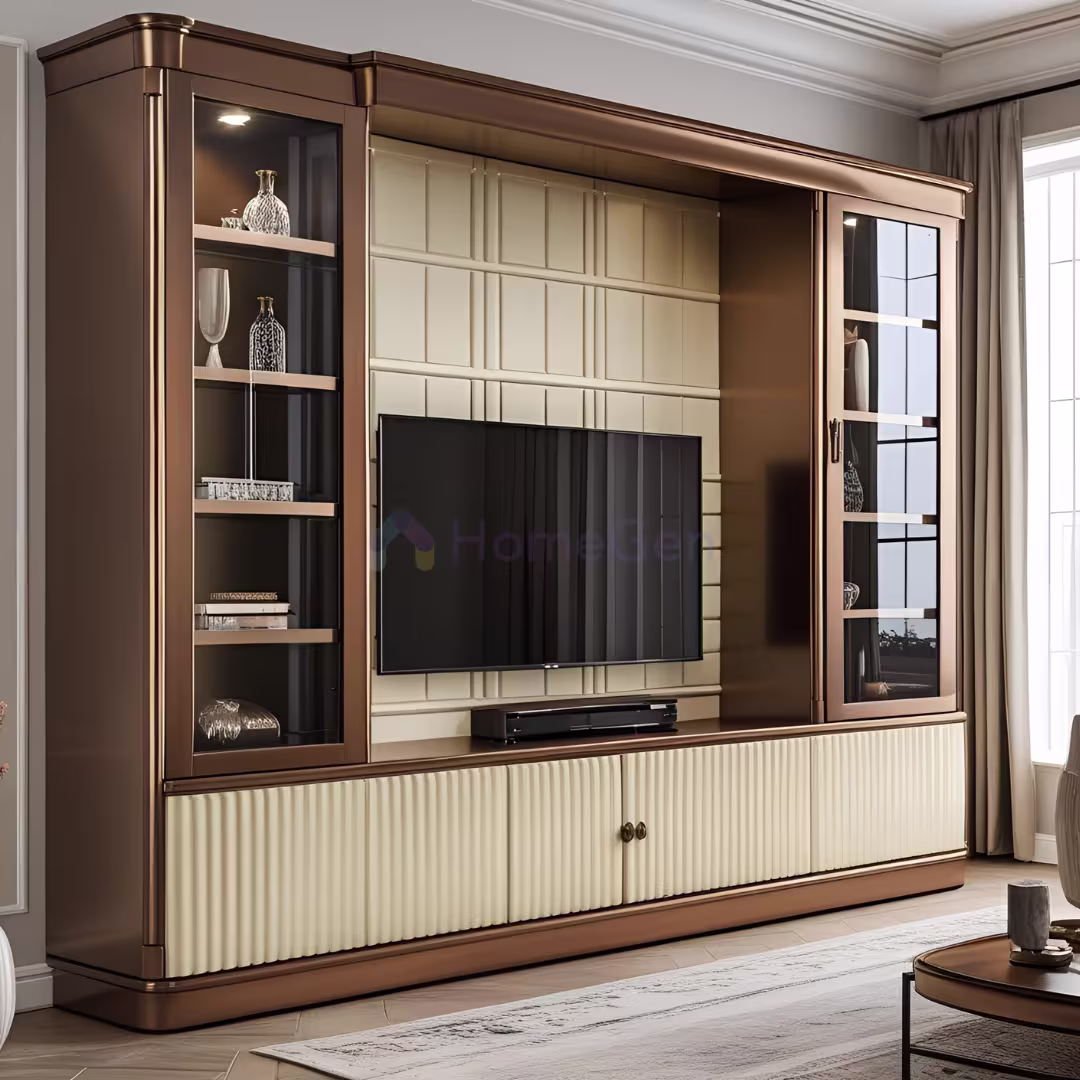

| Glass-Front Cabinets | Showcase crockery, silver pooja utensils, awards | Use LED-lit glass for night-time display |
| Tall Niche for Pooja Space | Idols, diya, incense | 18″ wide, 24″ high niche with marble back |
| Soundbar / Set-Top Box Slot | Soundbar, Tata Sky / Airtel DTH | Measure device dimensions before building |
| Bottom Open Space for Footwear/Temp | Shoes, charging station | Keep separated from electronics |
Cable Management & Stabilizers
Indian electronics come with large adapters, stabilizers for older homes, and multiple set-top boxes. We help you design a unit that tames the wires.
Swipe to see more columns
| Solution | How It Works | Indian Context |
|---|---|---|
| Built-in Wire Tray / Cut-out | Hollow cavity behind the unit with a slit to drop wires | Most common in custom floating units |
| Concealed Power Box inside Cabinet | 3–5 plug points installed inside a cabinet; all adapters hidden | Must accommodate a spike guard and multiple set-top box power bricks. Allow ventilation. |
| Wall-mounted PVC Pipe (In-Wall) | A 2-inch pipe chased into the wall behind the TV, opening into the unit below | Hides HDMI, power cable from TV. Best for wall-mounted TVs. |
| Ventilation Grilles | Small slots or metal grilles in cabinet back/door | Indian set-top boxes and routers run hot. Without ventilation, they overheat and lag. |
| Brush Grommet / Cable Entry Plate | A neat hole cover on the unit back/shelf for cables | Keeps dust and lizards out — essential |
| Dedicated Stabilizer Box | A separate ventilated cabinet for a voltage stabilizer | Still used in areas with fluctuating voltage |
- Install at least 2 switchboards inside the unit, one for always-on devices (router), one for TV/STB.
- Use a 16A socket if you plan to plug in a stabilizer or gaming PC.
- Always run the coaxial (cable TV) wire and Ethernet cable into the concealed section.
Lighting & Feature Upgrades
Lighting makes a unit look expensive without spending a lot. In India, warm white LED strips are the most popular choice.
Swipe to see more columns
| Feature | Effect | Best for Indian Homes |
|---|---|---|

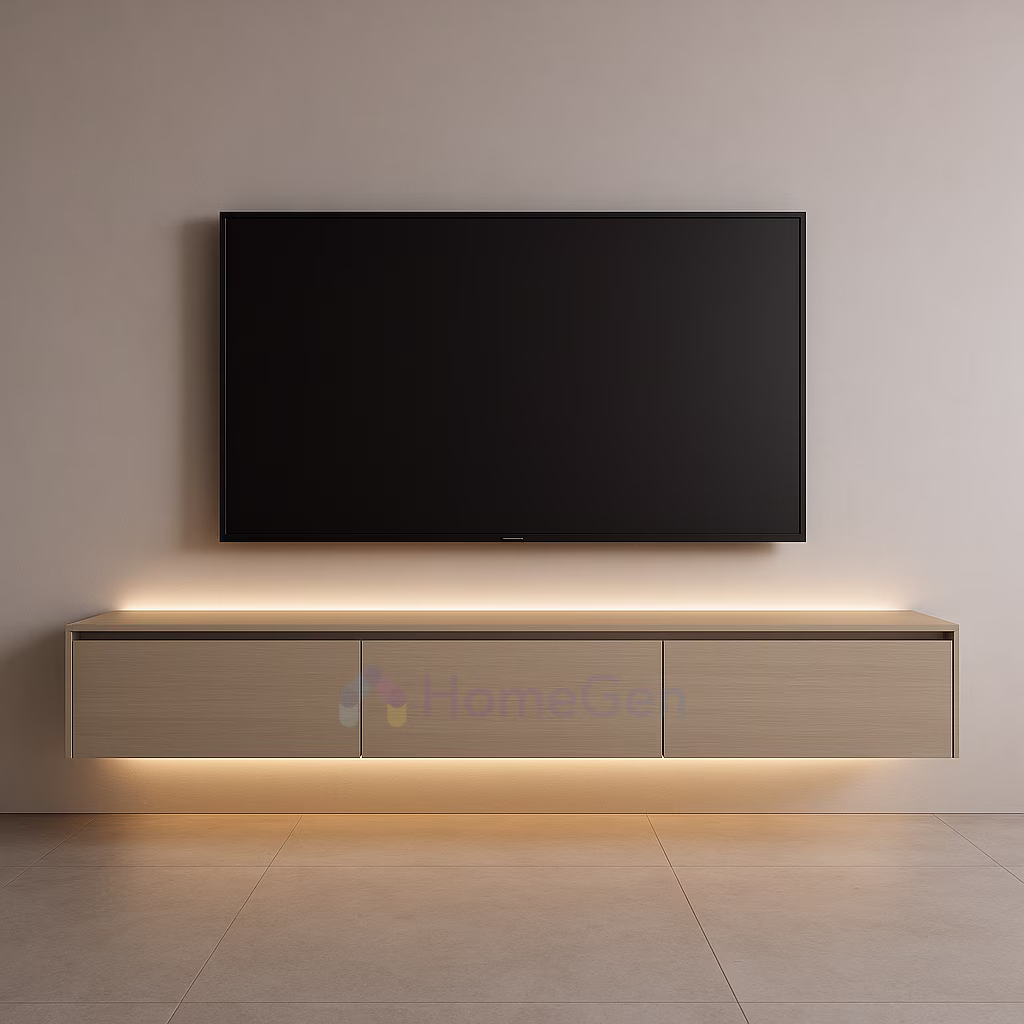

| LED Strip Behind Floating Unit (Bias Light) | Soft glow, wall appears to float, reduces eye strain | All floating units, all bedrooms |
| LED Strip Inside Open Shelves / Niches | Highlights decor, creates depth | Glass-front cabinets, pooja niche |

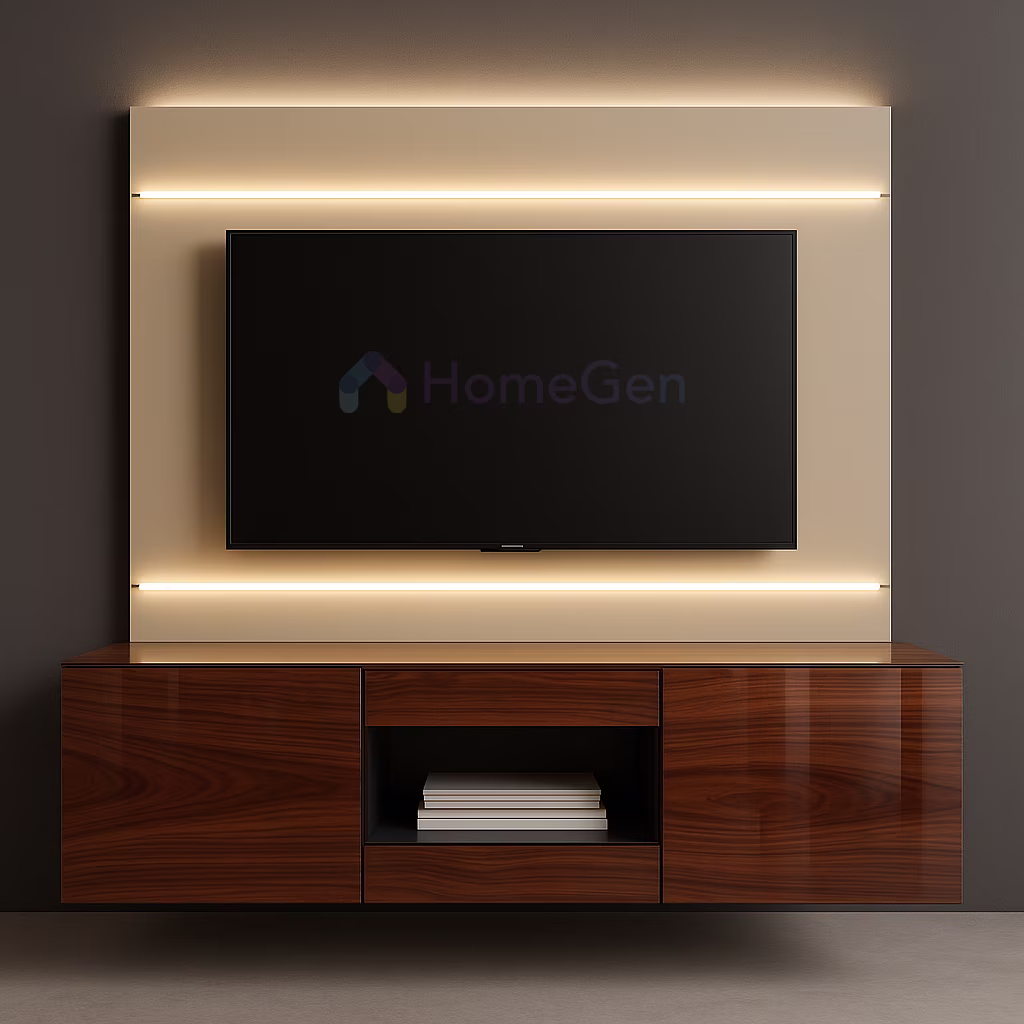

| Backlit Panel Behind TV | Feature wall glows softly | Master bedroom or living room accent wall |

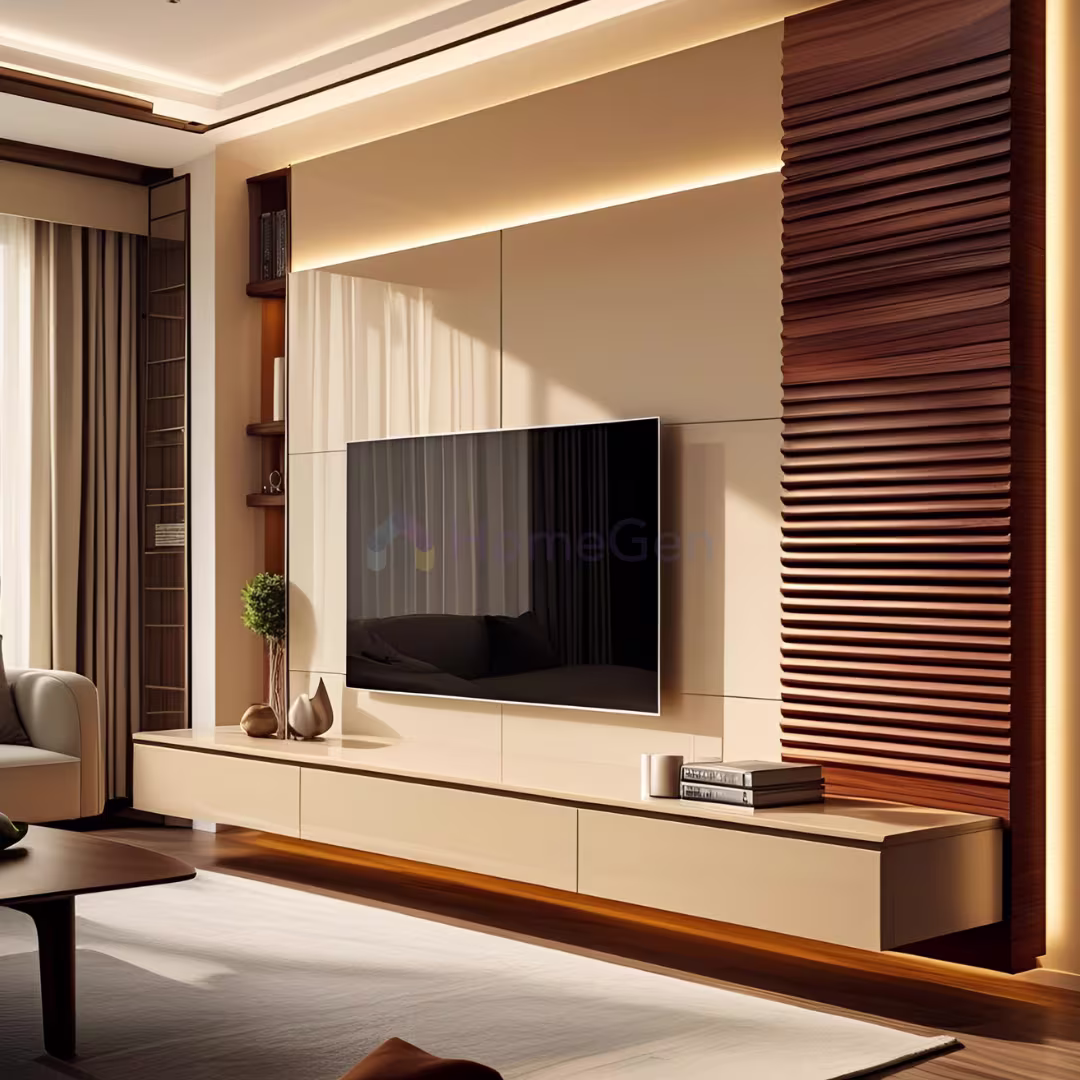

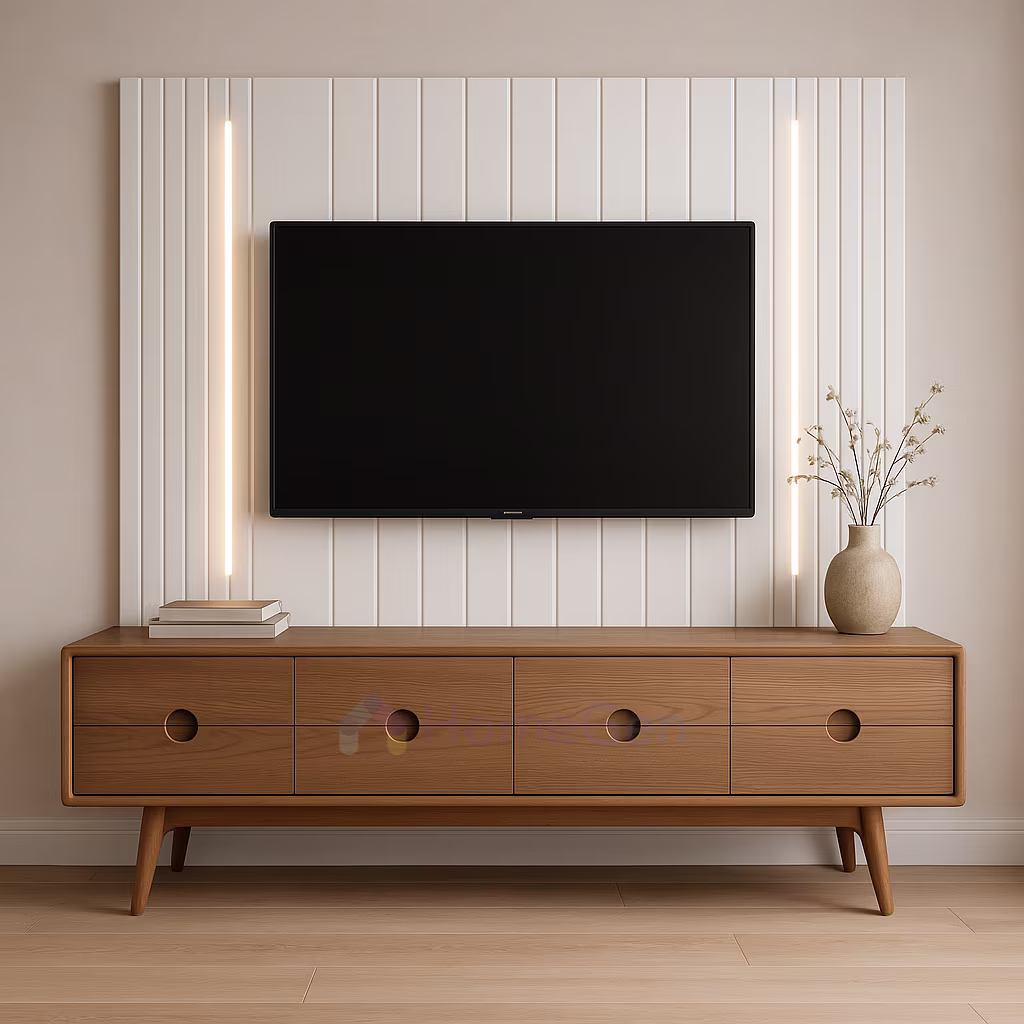

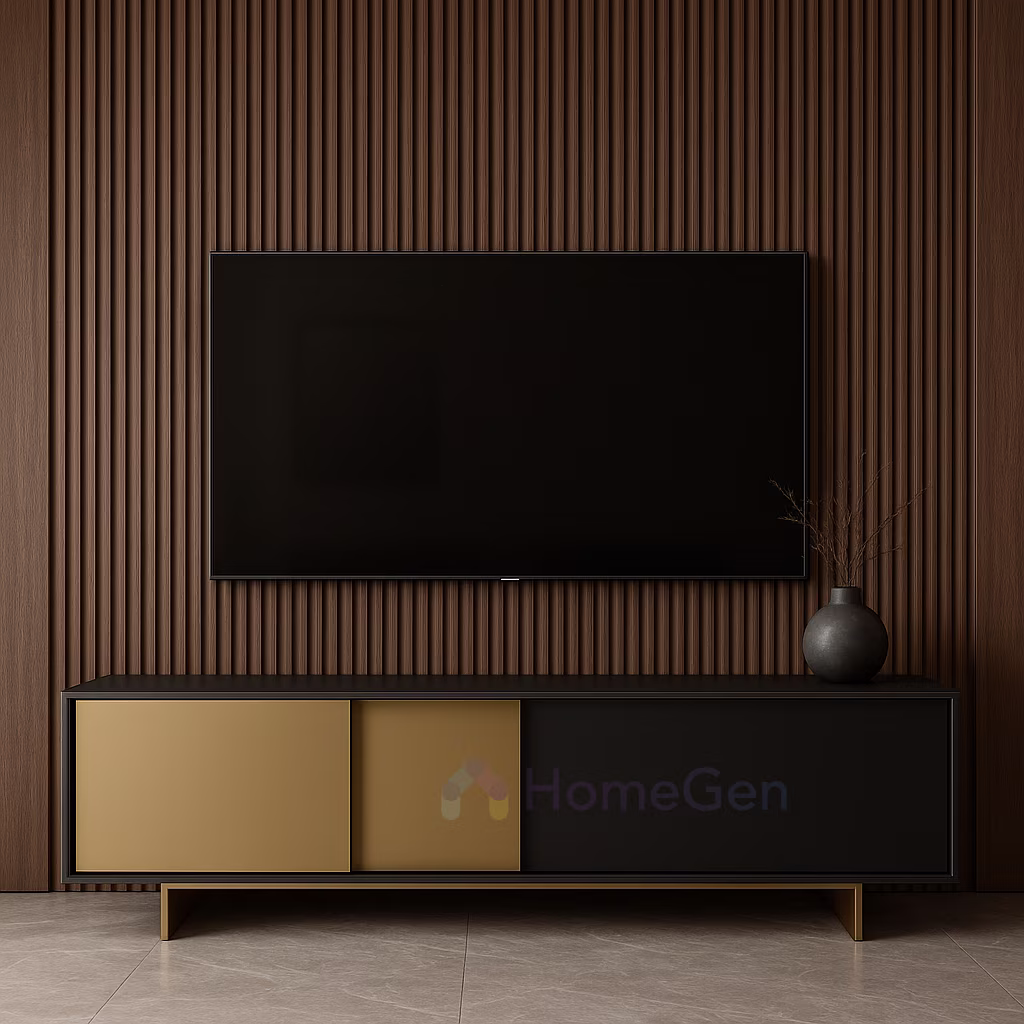

| Fluted Wood / PVC Panels Behind TV | Textured vertical lines add luxury | Bedroom TV walls |
| Sliding Shutters to Hide TV | TV disappears when not in use, gives a clean look | Traditional living rooms, pooja room adjacent units |
| Swivel / Tilting Wall Mount | Adjusts TV angle for bed or corner placement | All bedrooms, corner units |
TV Unit Design: From Planning to Installation
- Measure your wall, viewing distance, and floor-to-eye height in your sitting or lying position.
- Decide: living room? Mount at 42–44″ centre. Bedroom? Mount at 50–56″ with a tilting bracket.
- Pick a style that matches your existing sofa or bed wood finish.
- Choose material: BWP ply + laminate for long life; MDF + PU for a glossy look in dry rooms; WPC for coastal zones.
- Lock storage: 70–80% closed, 20–30% open. Plan a niche for pooja if needed.
- Plan electrics: 2 sockets inside, PVC pipe in wall behind TV, ventilation grille.
- Add warm white LED lighting — one strip behind the unit, one in the display niche.
- Set a budget using the cost table; invest in plywood and hardware, save on trendy accents.
- Consult a carpenter or brand with these specifications in hand — now you know exactly what to ask for.
